ATS-500 high-power RF switch
Description

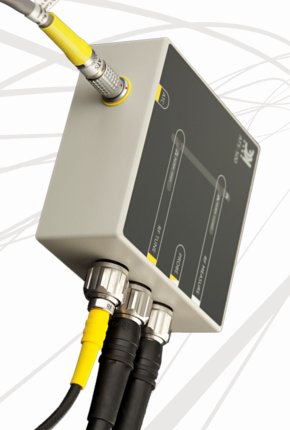

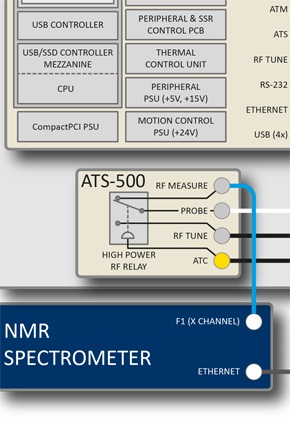

The ATS-500 digitally controlled RF switch is used to redirect the RF line of the NMR probe from the autotuning controller to the NMR spectrometer during the signal acquisition mode. This switch is used to integrate the AT-PMSC-1 autotuning system and the existing NMR spectrometer. Except for the use of this switch, no additional RF or I/O connectivity between the spectrometer and AT-PMSC-1 is required.
Technical specifications

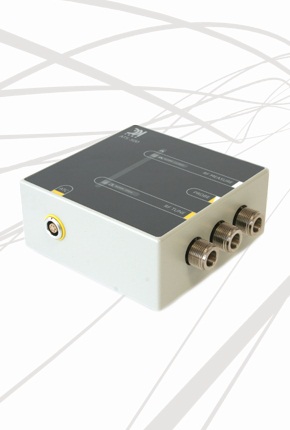

| General | |
|---|---|
| dimensions (W x D x H) | 10.5 cm x 10.5 cm x 5 cm (4.1” x 4.1” x 2”) |
| weight | 0.5 kg (1.1 lbs) |
| housing material | chromated aluminium, MIL-specs compliant surface paint in RAL 7038 color |
| Electrical characteristics | |
| frequency range | DC – 2 GHz |
| max. CW power | 400 W @ 500 MHz |
| max pulsed power | > 1.5 kW @ 500 MHz |
| impedance | 50 Ω |
| actuator | electromechanical, failsafe, unused port terminated (5 W max.) |
| actuation signal | TTL |
| max. stray magnetic field | 10 G (1 mT) |
| Mechanical characteristics | |
| switching speed | < 20 ms |
| life | 1.000.000 cylces |
| Operator panel | |
| status indicators | high/low power LEDs |
| connectors | probe: type N female RF measure: type N female RF tune: type N female ATC (to autotuning controller): 6-pin female |
