Options and Accessories for the AT-PMSC-1 autotuning system

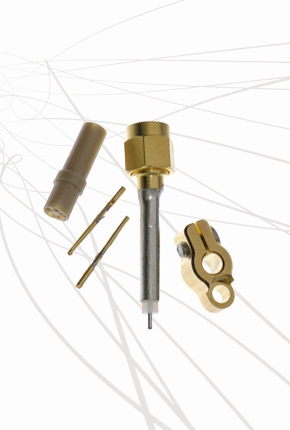

The standard NMR detection circuit featuring an irradiation/detection coil and two trimming elements for tuning and matching can be upgraded to four trimming elements. Specifically, a second pair of variable capacitors can be installed, allowing for even broader frequency tuning range in the frequency-stepping experiments (typically beyond 20 MHz) or for double resonance experiments. Trimmer capacitors with a broad selection of capacitance ranges are available, both for room temperature and cryogenic applications.

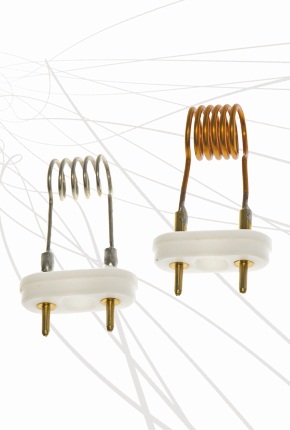

The installation of coils has been made easy through the use of a rapid-exchange coil holders. The customer can either order empty holders or holders fitted with coils of various shapes and sizes.

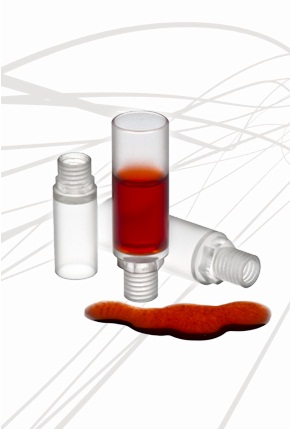

Liquids, powders, and single-crystals holders made of various polymers (PMMA, Teflon, Vespel) or machinable ceramics (Macor) are available in various sizes (max. 10mm outer diameter).
